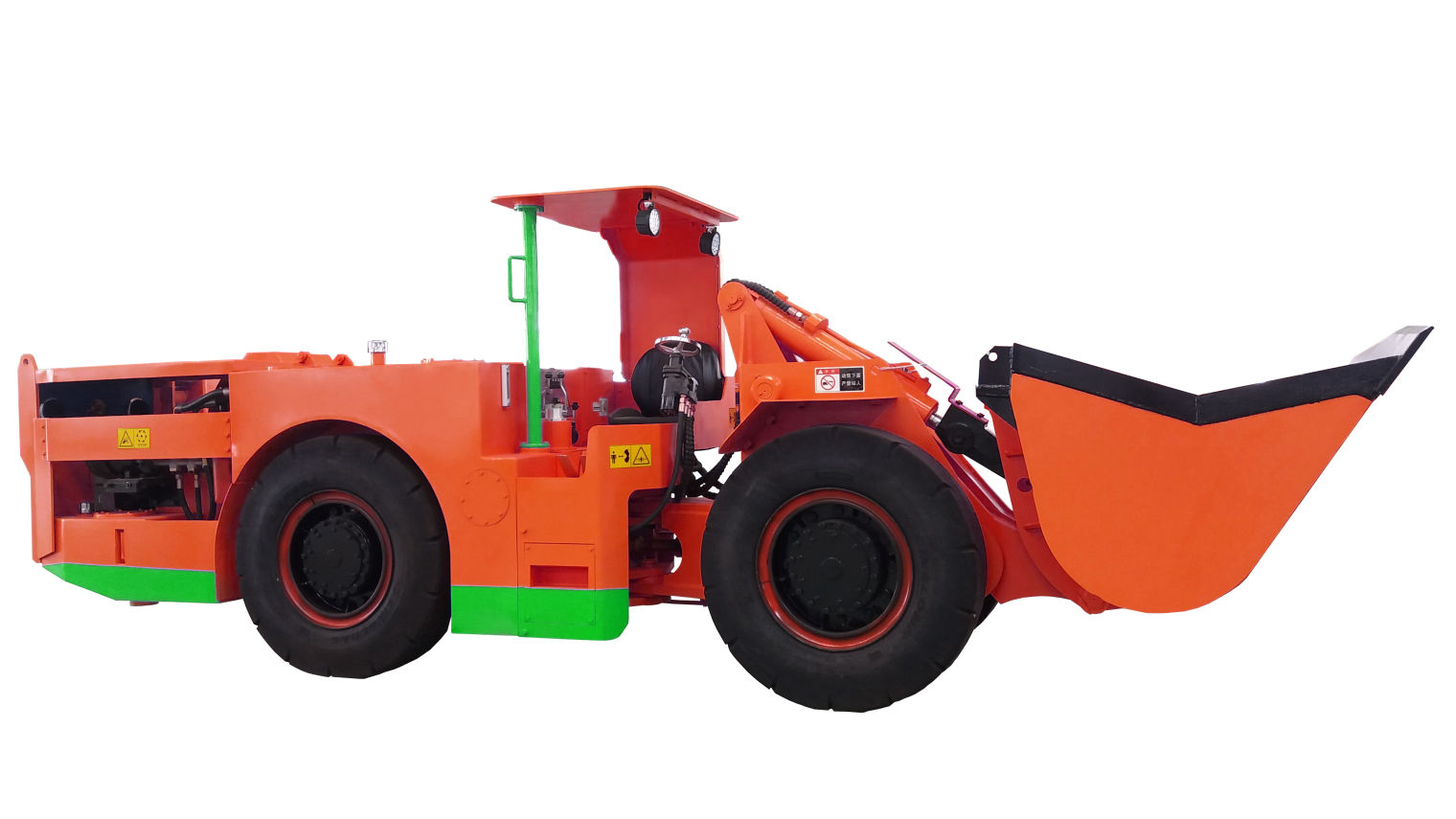

ERL-1 Load-Haul-Dump Machine

Small size mining contender

The ERL-1 is an Electric Drive Load-Haul-Dump Machine ideal for small size rock excavation operations with ventillation constraints. The ERL-1 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.

Technical Highlights

  • Tramming Capacity
  • Volume Capacity
  • Operating Weight
  • Total Loaded Weight
  • Total Length
  • Maximum Width
  • Height with Safety Canopy
  • Ground Clearance
  • Electric Motor
  • Electric Motor Output
  • Pump Drive
  • Motor Drive
  • Axles
  • Tires

Specifications

  • 2000 kg
  • 1 m3
  • 7000 kg
  • 9000 kg
  • 6170 mm
  • 1300 mm
  • 2000 mm
  • ≥220 mm
  • Y225M-4 (IP44)
  • 45 kW
  • PV22 (Hydrostatic System)
  • MV23 (Hydrostatic System)
  • XUZHOU-JINHE
  • 10.00-20.00
