RL-0.6 Load-Haul-Dump Machine

Workhorse of narrow vein mining

The RL-0.6 Load-Haul-Dump Machine is ideal for small size rock excavation operations. The RL-0.6 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.

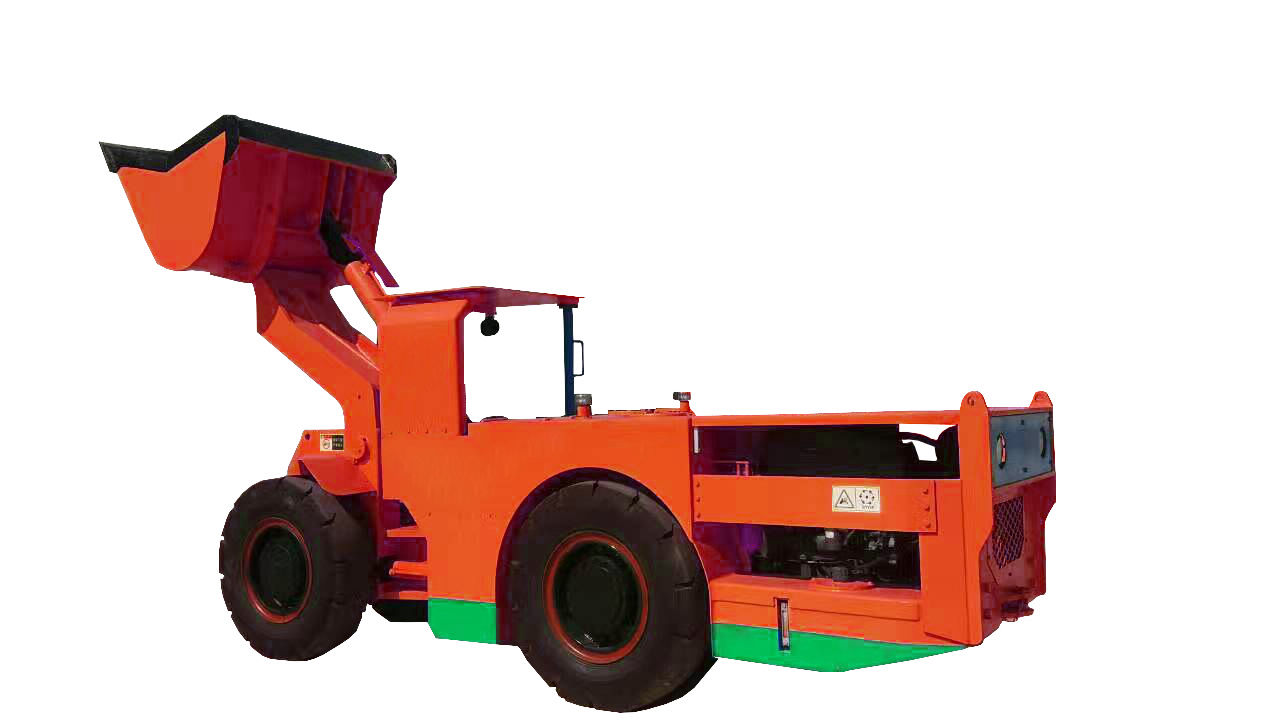

ROXMECH RL-0.6 Load-Haul-Dump Machine

Technical Highlights

Tramming Capacity
Volume Capacity
Operating Weight
Total Loaded Weight
Total Length
Maximum Width
Height with Safety Canopy
Ground Clearance
Diesel Engine
Engine Output
Pump Drive
Motor Drive
Axles
Tires

Specifications

1200 kg
0.60 m³
4400 kg
5600 kg
5050 mm
1150 mm
1950 mm
180 mm
DEUTZ BF4L2011
47.5 kW @ 2300 rpm
PV22 (Hydrostatic System)
MV23 (Hydrostatic System)
XUZHOU-JINHE
7.50-15.00

RL-0.6 Load-Haul-Dump Machine Drawing Sheets

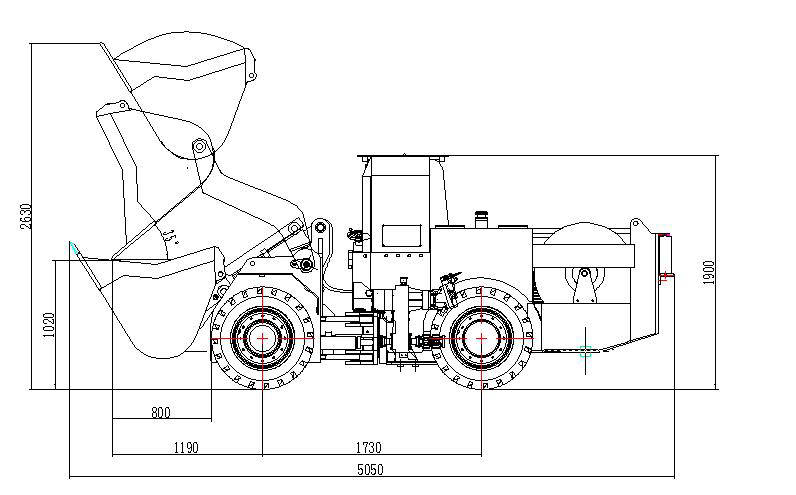

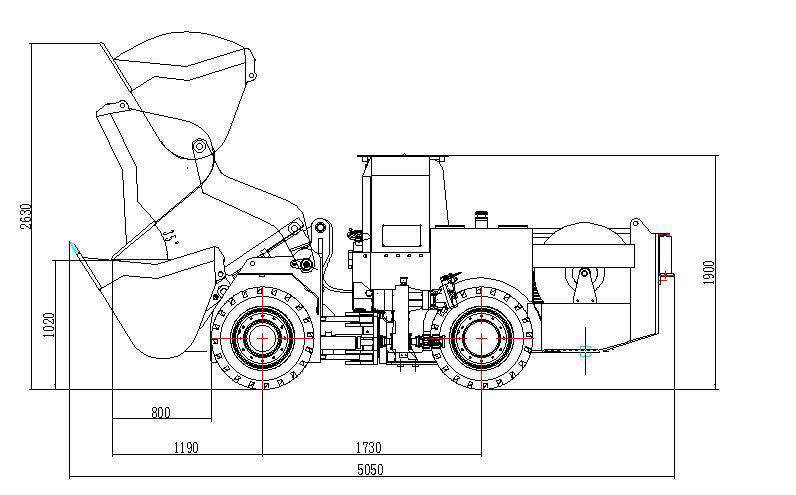

RL-0.6 Load-Haul-Dump Machine Drawing Sheet 1

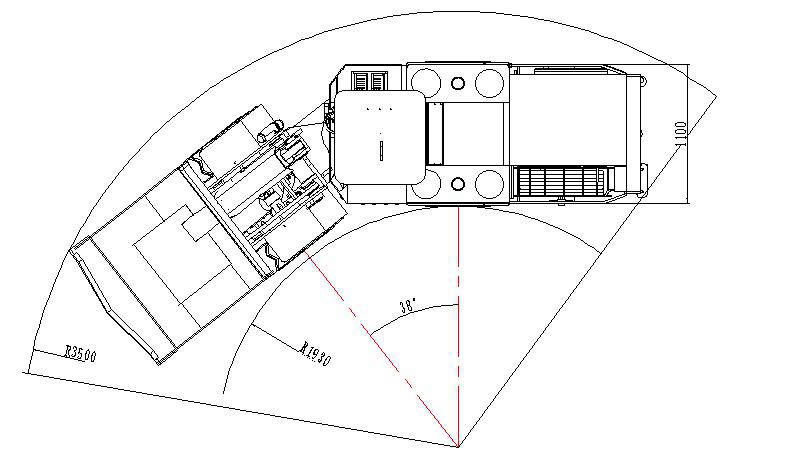

RL-0.6 Load-Haul-Dump Machine Drawing Sheet 2
