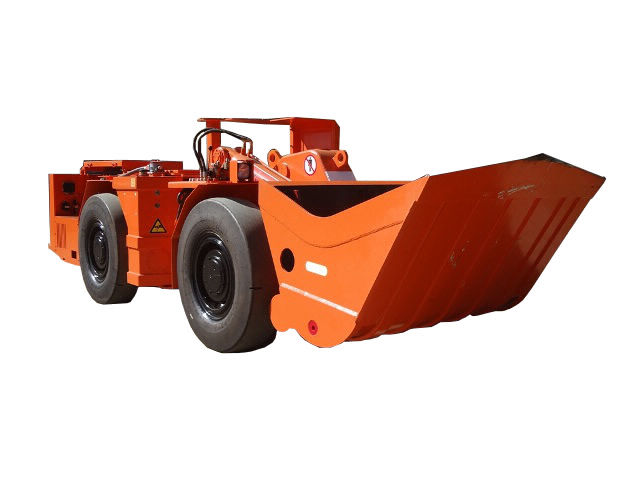

RL-2 Load-Haul-Dump Machine

Workhorse of small to medium size mining and tunneling projects

The trusted workhorse of miners and tunneling professionals, the RL-2 Load-Haul-Dump Machine is ideal for small to medium size rock excavation operations. The RL-2 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.
The RL-2 is CE certified, complying with the essential health and safety requirements of the Directive 2006/42/EC and low voltage directive 2006/95/EC (thru compliance of EN 60204-1:2006+A1:2009)

Technical Highlights

  • Tramming Capacity
  • Volume Capacity
  • Operating Weight
  • Total Loaded Weight

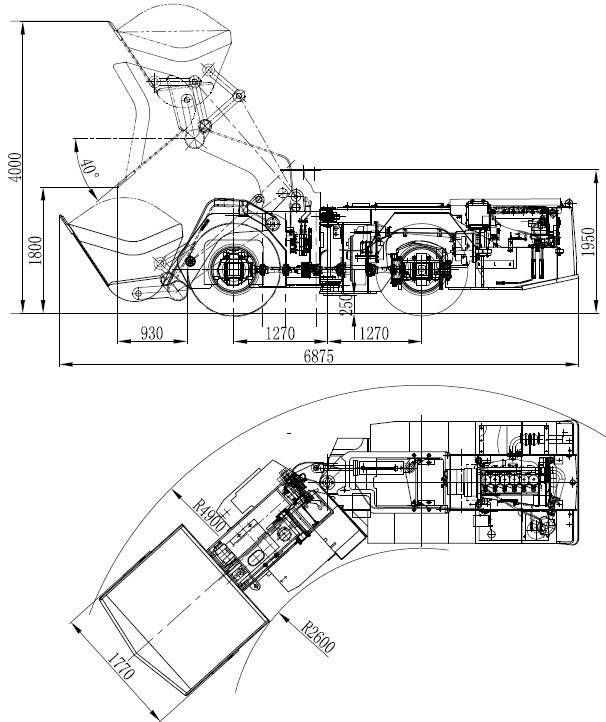

  • Total Length
  • Maximum Width
  • Height with Safety Canopy
  • Ground Clearance
  • Diesel Engine
  • Engine Output
  • Transmission
  • Torque Converter
  • Axles
  • Tires

Specifications

  • 4000 kg
  • 2 m3
  • 11000 kg
  • 14800 kg
  • 6875 mm
  • 1770 mm
  • 1950 mm
  • 250 mm
  • DEUTZ F6L912W
  • 63 kW @ 2300 rpm
  • DANA R32000
  • DANA C273
  • TLDCY-2S with SAHR Brakes
  • 12.00-24.00

Watch the RL-2 Load-Haul-Dump Machine at work!
