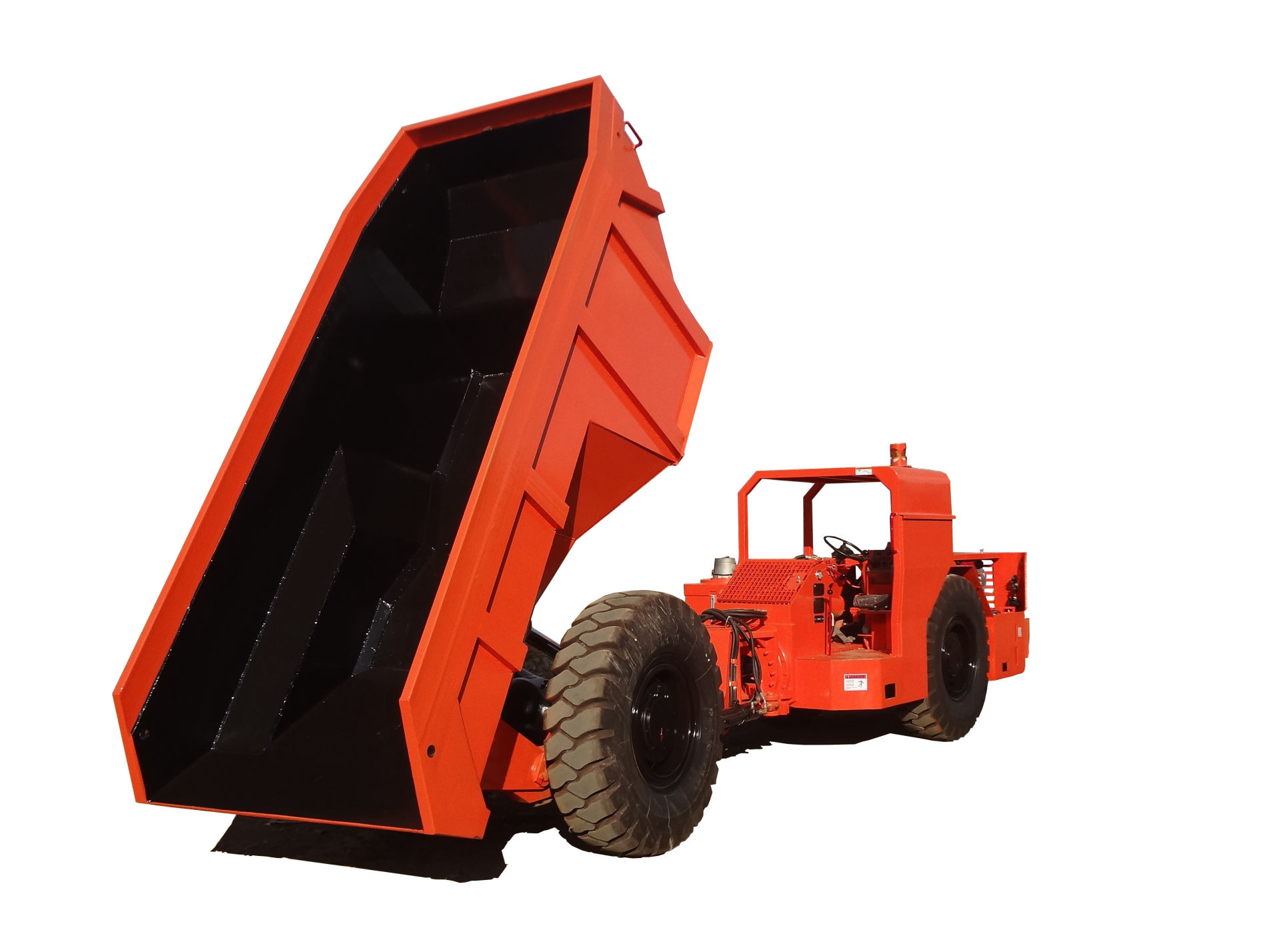

RT-15 Low Profile Dump Truck

Productive hauler for medium size projects

The RT-15 Low Profile Dump Truck is ideal for medium size rock excavation operations that require high haulage productivity. The RT-15 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.

ROXMECH RT-15 Low Profile Dump Truck

Technical Highlights

  • Tramming Capacity
  • Volume Capacity
  • Operating Weight
  • Total Loaded Weight
  • Total Length
  • Maximum Width
  • Height with Safety Canopy
  • Ground Clearance
  • Diesel Engine
  • Engine Output
  • Transmission
  • Motor Drive
  • Axles
  • Tires

Specifications

  • 15000 kg
  • 7 m3
  • 15000 kg
  • 30000 kg
  • 7967 mm
  • 2242 mm
  • 2150 mm
  • 294 mm
  • DEUTZ BF6L914C
  • 112 kW @ 2300 rpm
  • DANA R32421
  • DANA C273
  • DANA 16D2149LCB, POSI-STOP
  • 14.00-24.00
