RT-20 Low Profile Dump Truck

Productive hauler for medium to large size projects

The RT-20 Low Profile Dump Truck is ideal for medium to large size rock excavation operations that require high haulage productivity. The RT-20 maintains the simple yet very robust design tenets of what a mining equipment should be - it has high proven reliability, and straight-forward mechanical components that are easy to maintain.

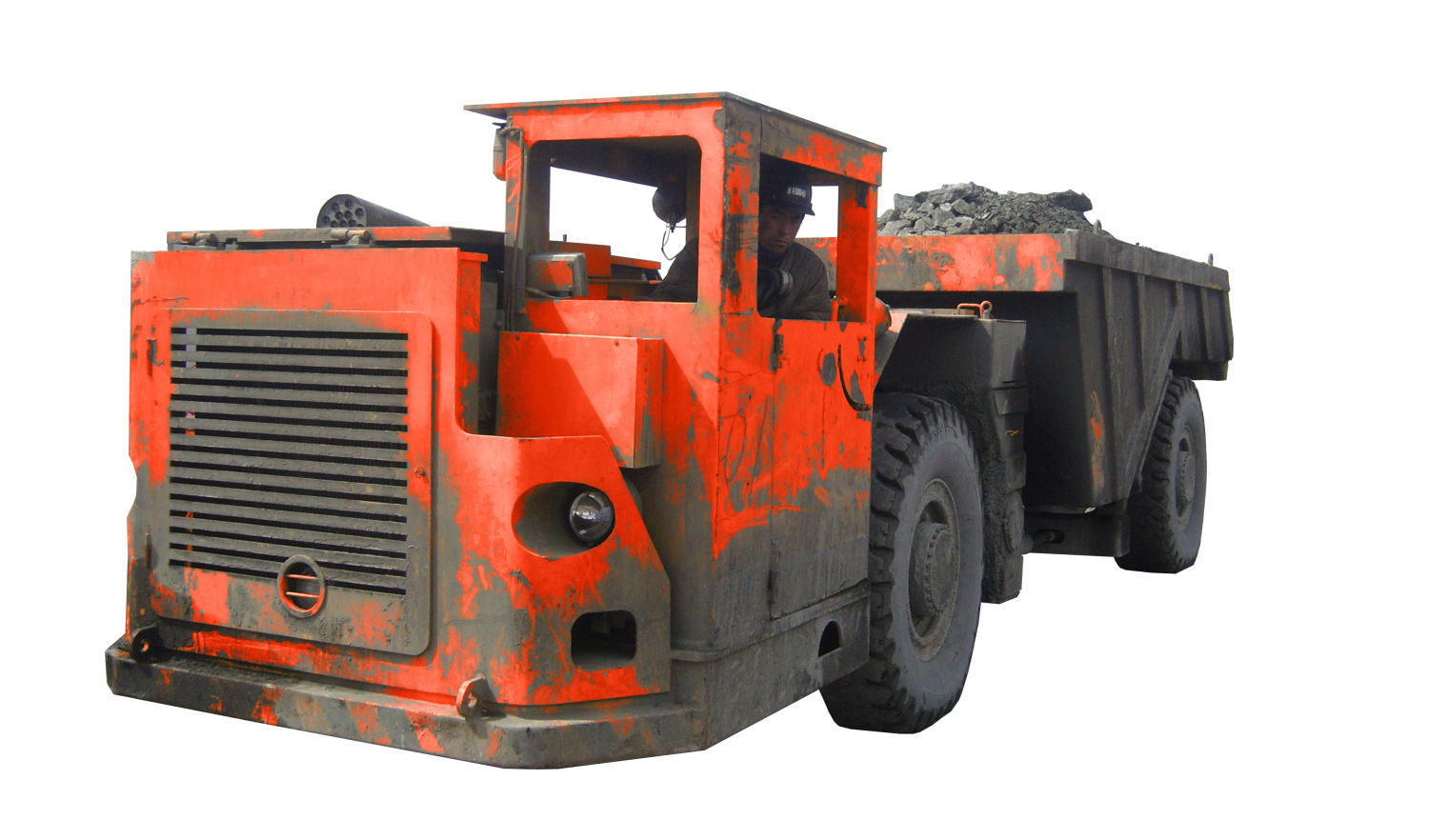

ROXMECH RT-20 Low Profile Dump Truck

Technical Highlights

  • Tramming Capacity
  • Volume Capacity
  • Operating Weight
  • Total Loaded Weight
  • Total Length
  • Maximum Width
  • Height with Safety Canopy
  • Ground Clearance
  • Diesel Engine
  • Engine Output
  • Transmission
  • Motor Drive
  • Axles
  • Tires

Specifications

  • 20000 kg
  • 10 m3
  • 19000 kg
  • 39000 kg
  • 9046 mm
  • 2280 mm
  • 2325 mm
  • 370 mm
  • DEUTZ BF6M1013EC
  • 233 kW @ 2300 rpm
  • DANA R36000
  • DANA CL5000
  • DANA 19D, POSI-STOP
  • 16.00-25.00
